Model

PETRO-FROCE 1-1S8N

PETRO-FROCE 2-2S12N

PETRO-FROCE 3-2S12N

PETRO-FROCE 4-3S16N
Capacity m³/h  120 240 240 360

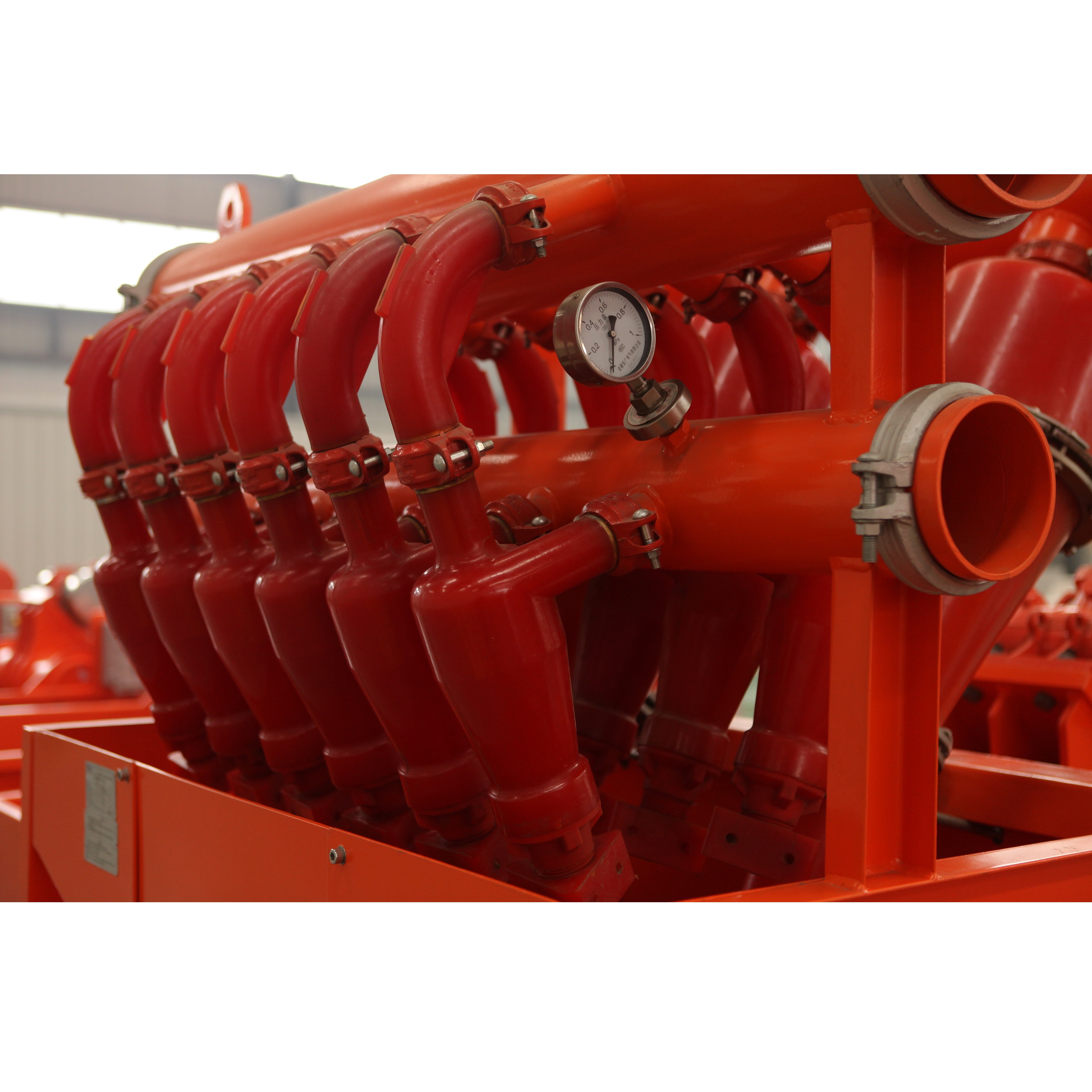

Desander Size(Inch) 10”

Desander Qty

 1 2 2 3
Размер илоотделителя (дюймы) 4”
Кол-во илоотделителей (шт.) 8 12 12 16
Working Pressure 0.25~0.4
Feeding Size DN150
Output Size DN200

SHALE SHAKER SPECIFICATIONS
Model PETRO-FORCE 1 PETRO-FORCE 2 PETRO-FORCE 3 PETRO-FORCE 4
Vibration Mode Линейное движение
Vibration Motor(Kw) 2х1.5 2х1.5 2х1.72 2х1.72
Screen Qty(Pcs) 3 3 4 4
Screen Size(mm) 585х1165
Screen Area 2.04 2.04 2.73 2.73
Adjust G Force <7.5G
Vibration Amplitude 4.14~5.96 4.14~5.96 4.4~6.34 4.4~6.34
Deck Angle Range -3~+3
Weight(Kg) 1864 1960 2198 2303
Dimension:mm 2058х1762х2194 2058х1762х2194 2650х1762х2194 2650х1762х2194
